Choosing the right
product

Here at FABWORX we have over 20 different products to help utilize all the space in your conversion

But its extremely important to size your space

 correctly.

Please watch the video (finding the right size)

When installing we would also advise to leave a 10mm gap on each side of the seat / bed. You also      need to make sure the seat can fold flat into a bed (roughly 6ft long)

ALL our seating products come with the correct

 fitting kits.

FITTING

We have made the fitting process as easy as

 possible which can be completed at home in around 1 hour, or 2 hours for a RS Sliding system.  We also offer this service at our Chesterfield HQ

(charges apply)

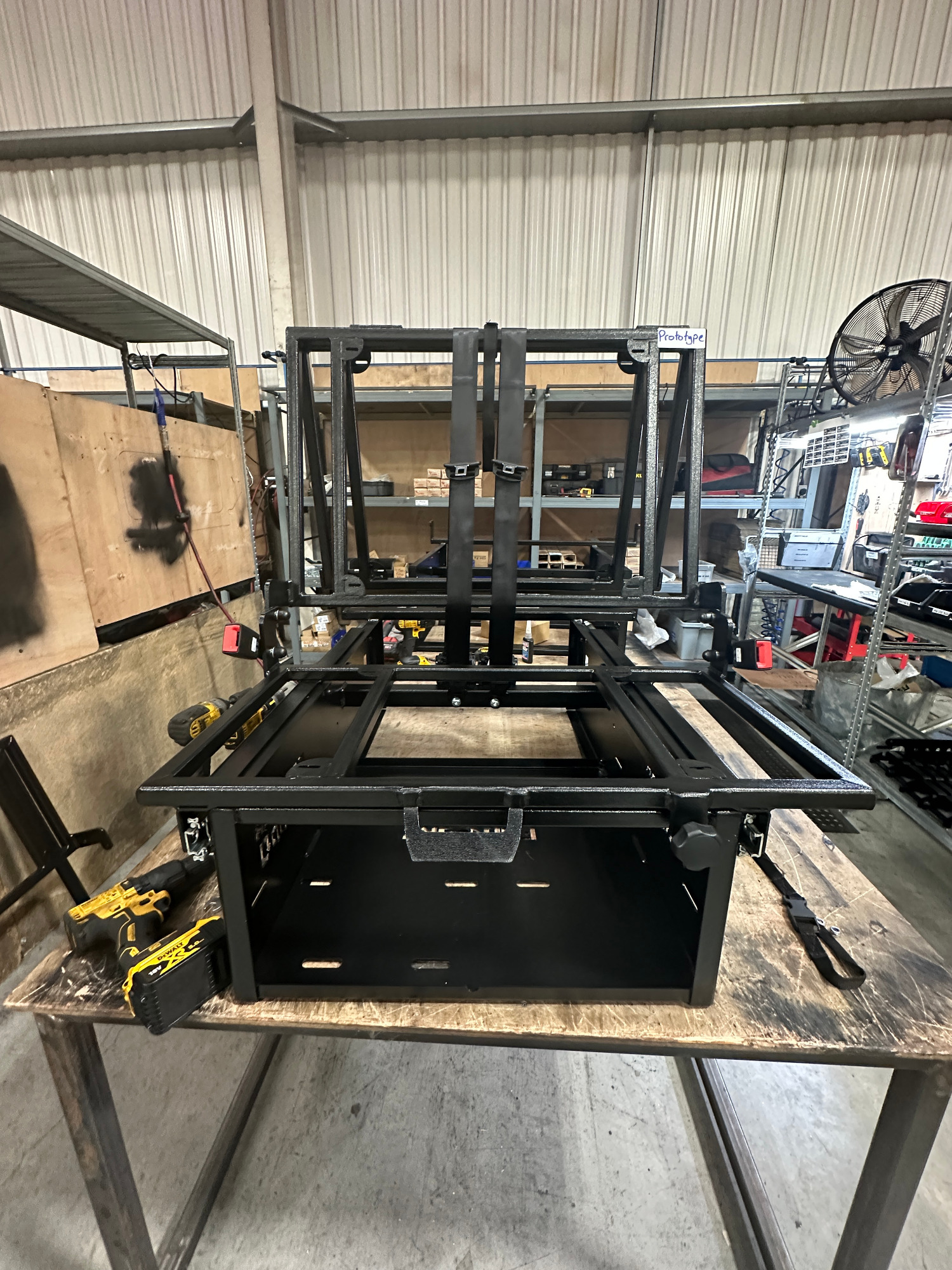

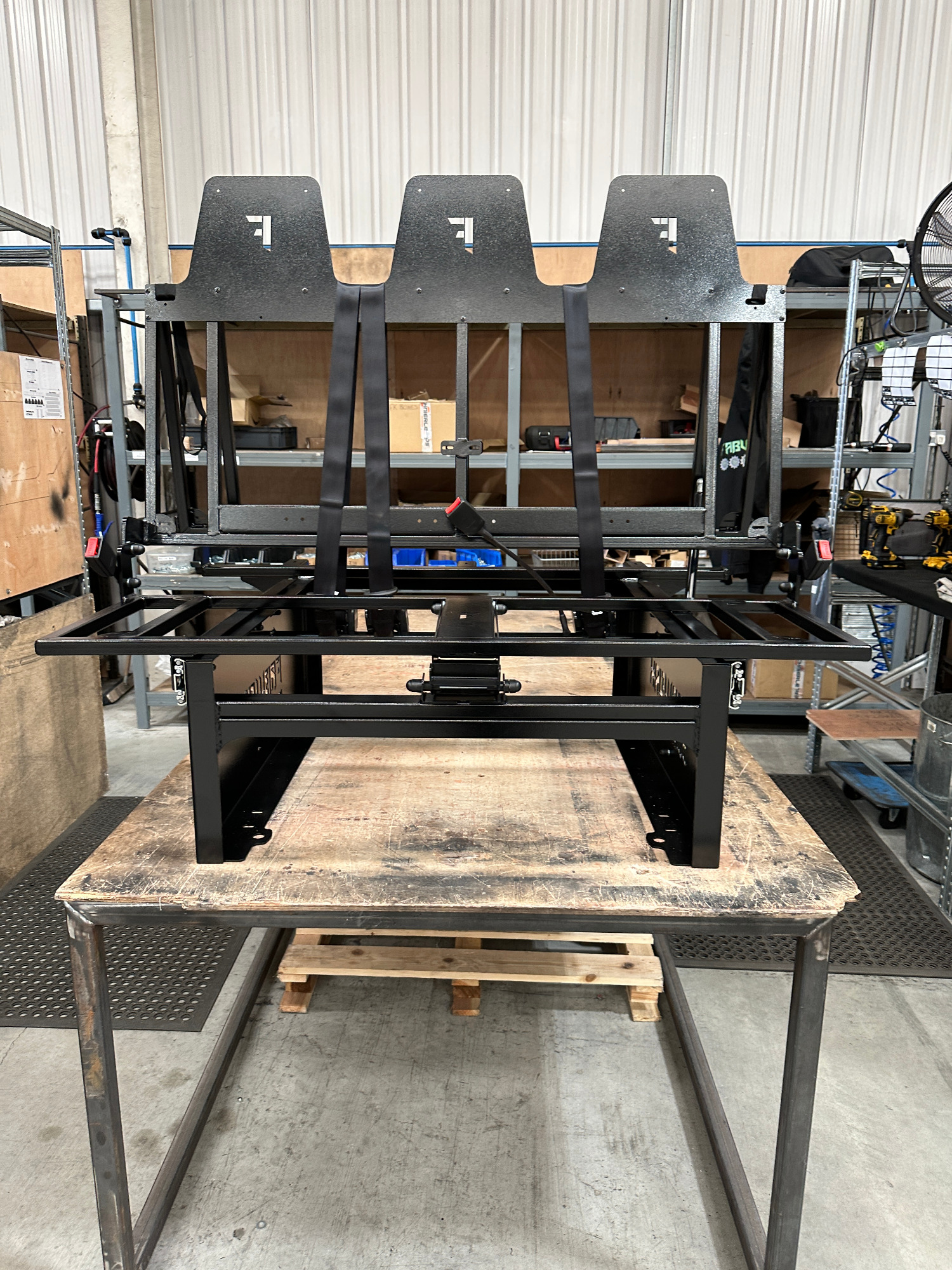

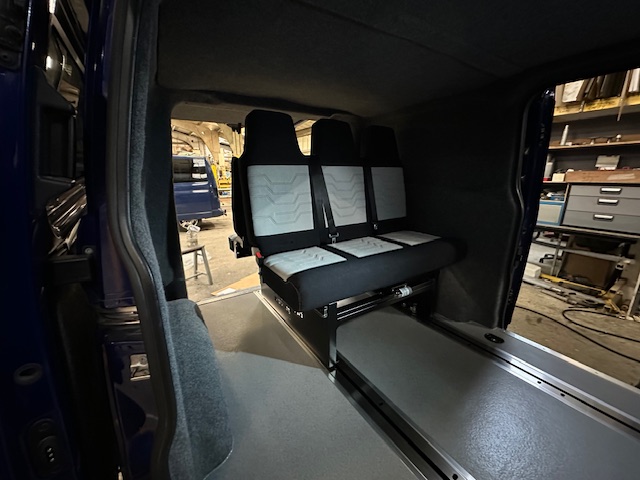

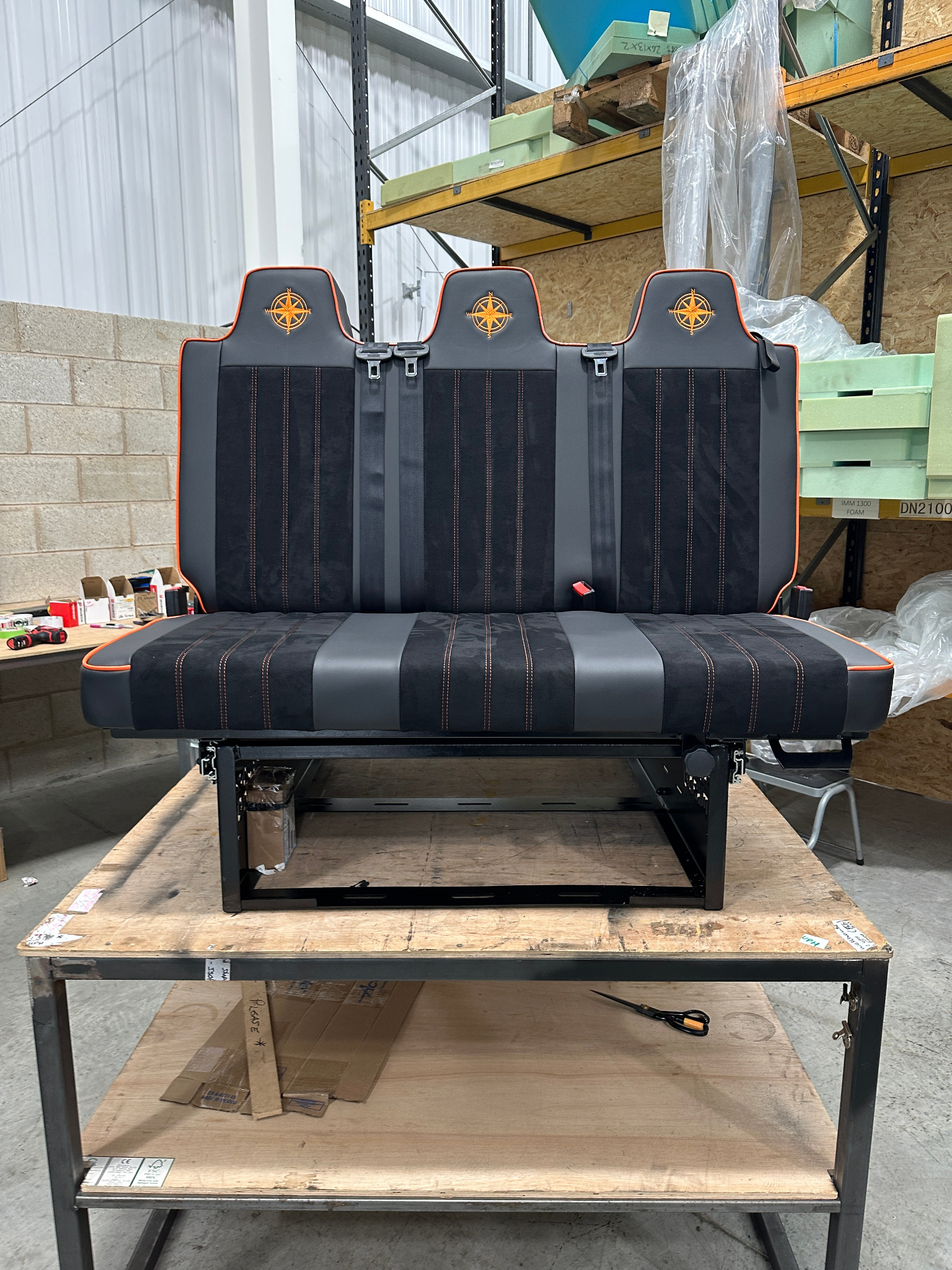

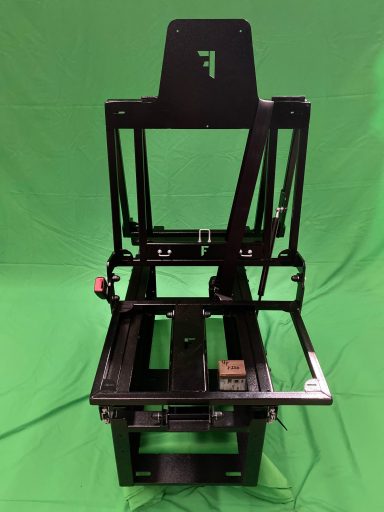

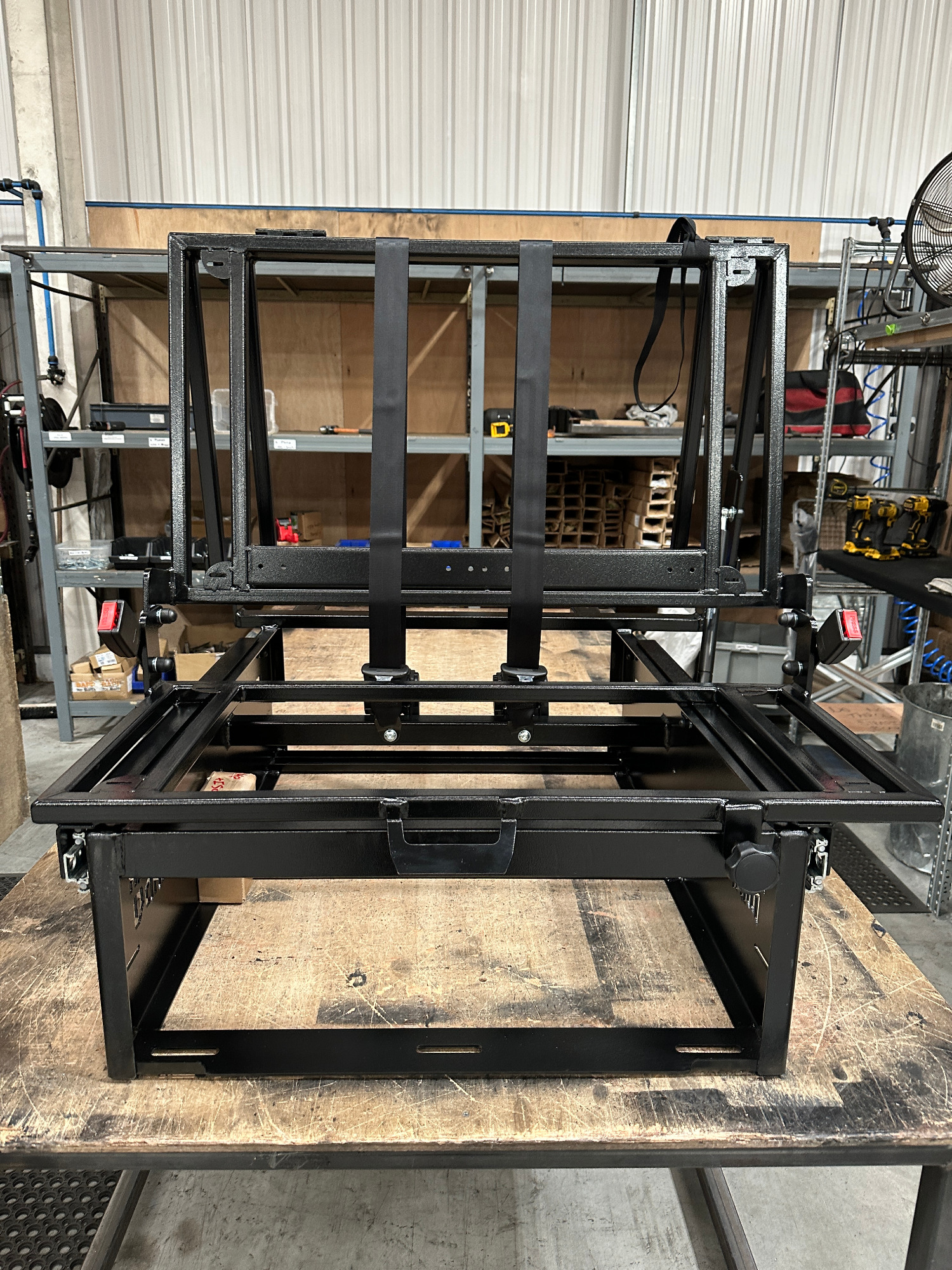

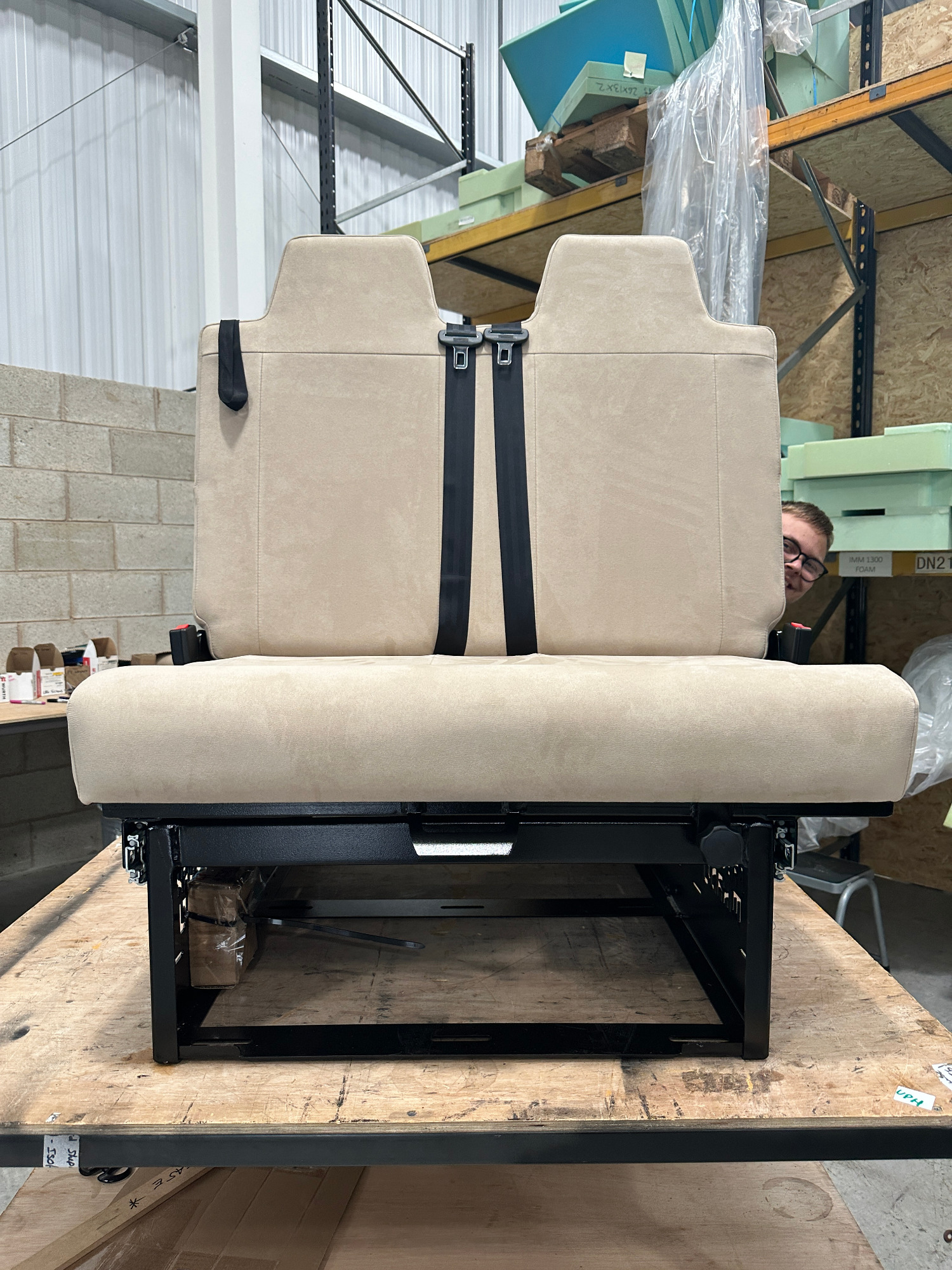

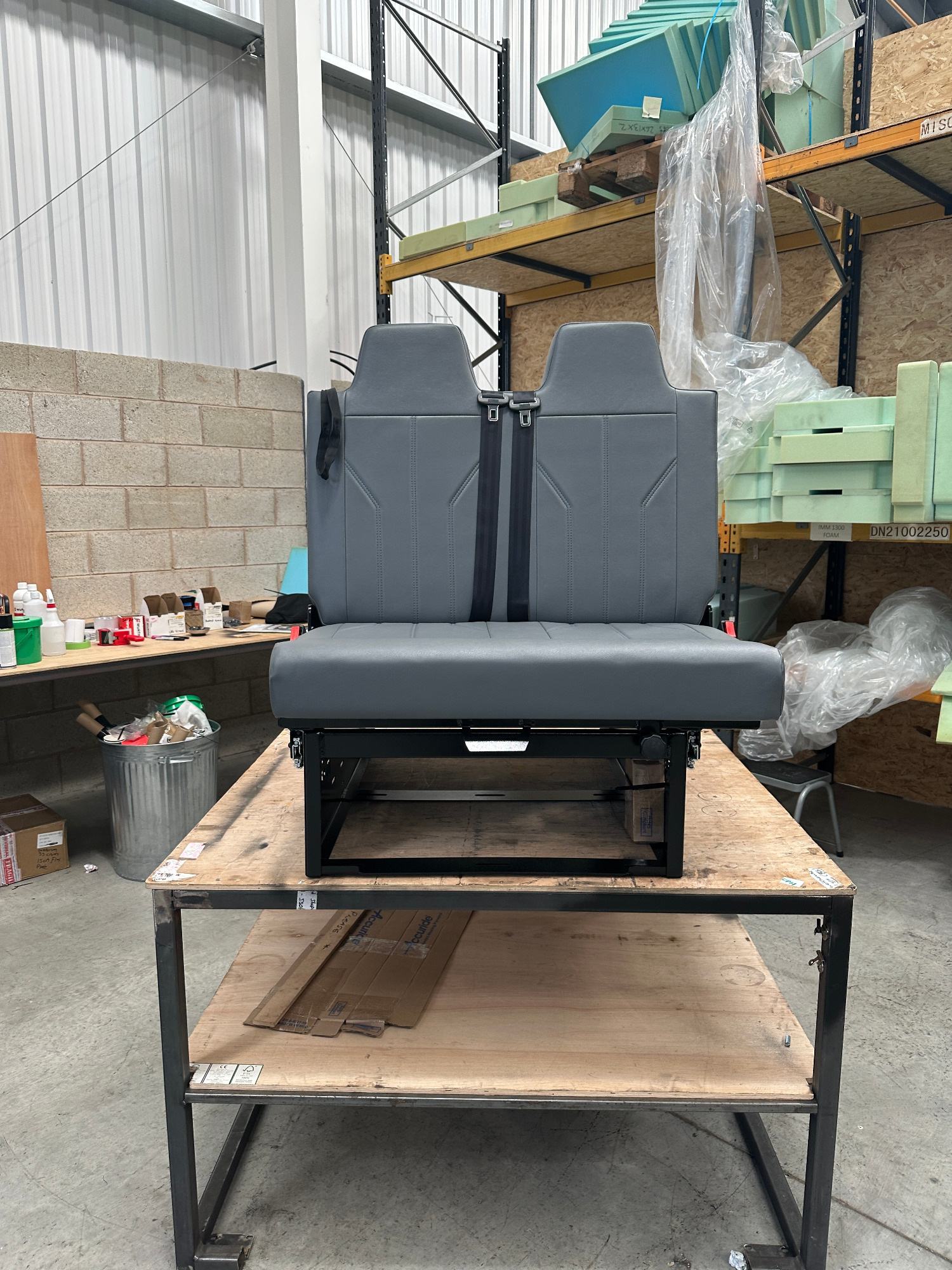

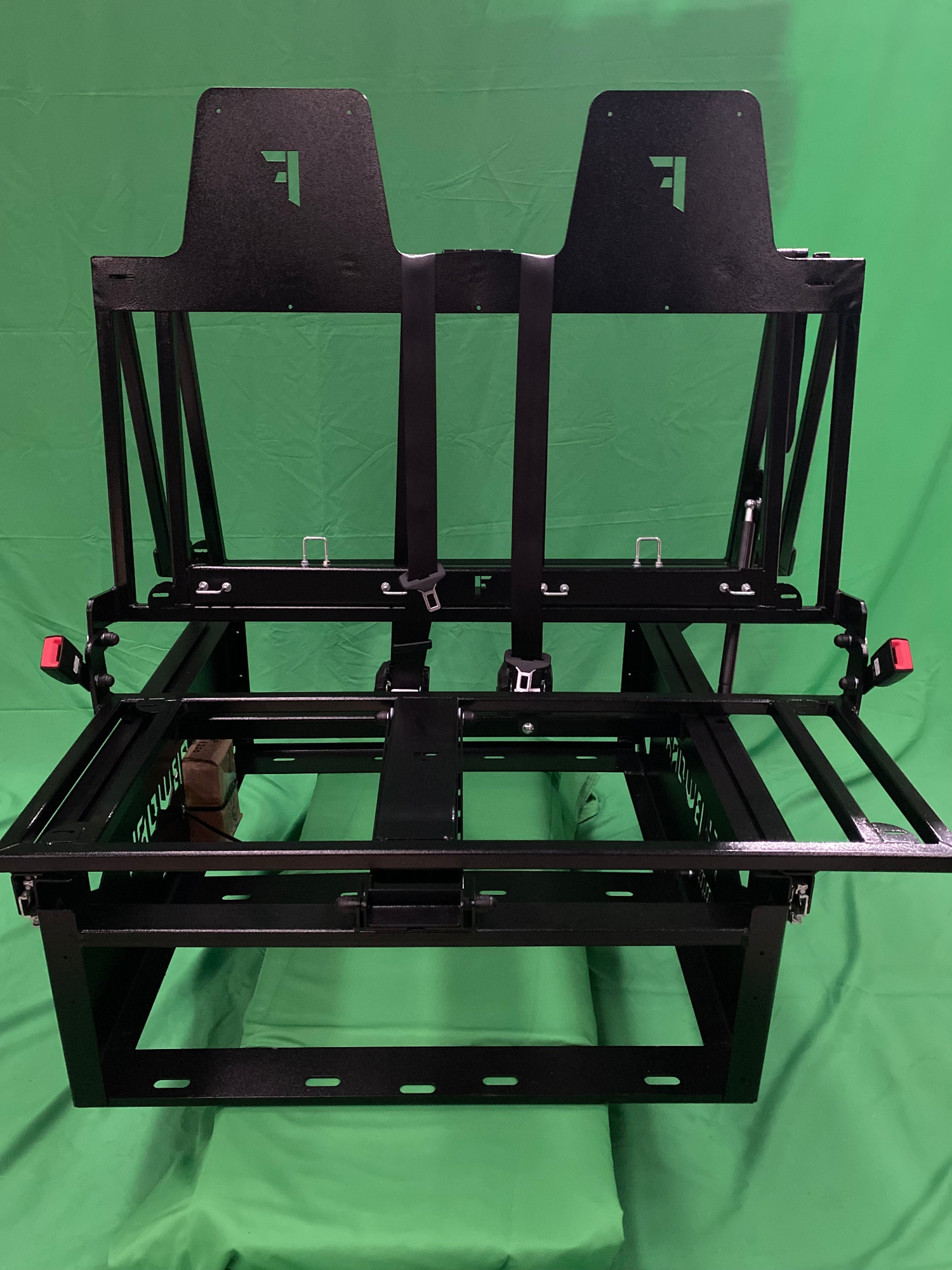

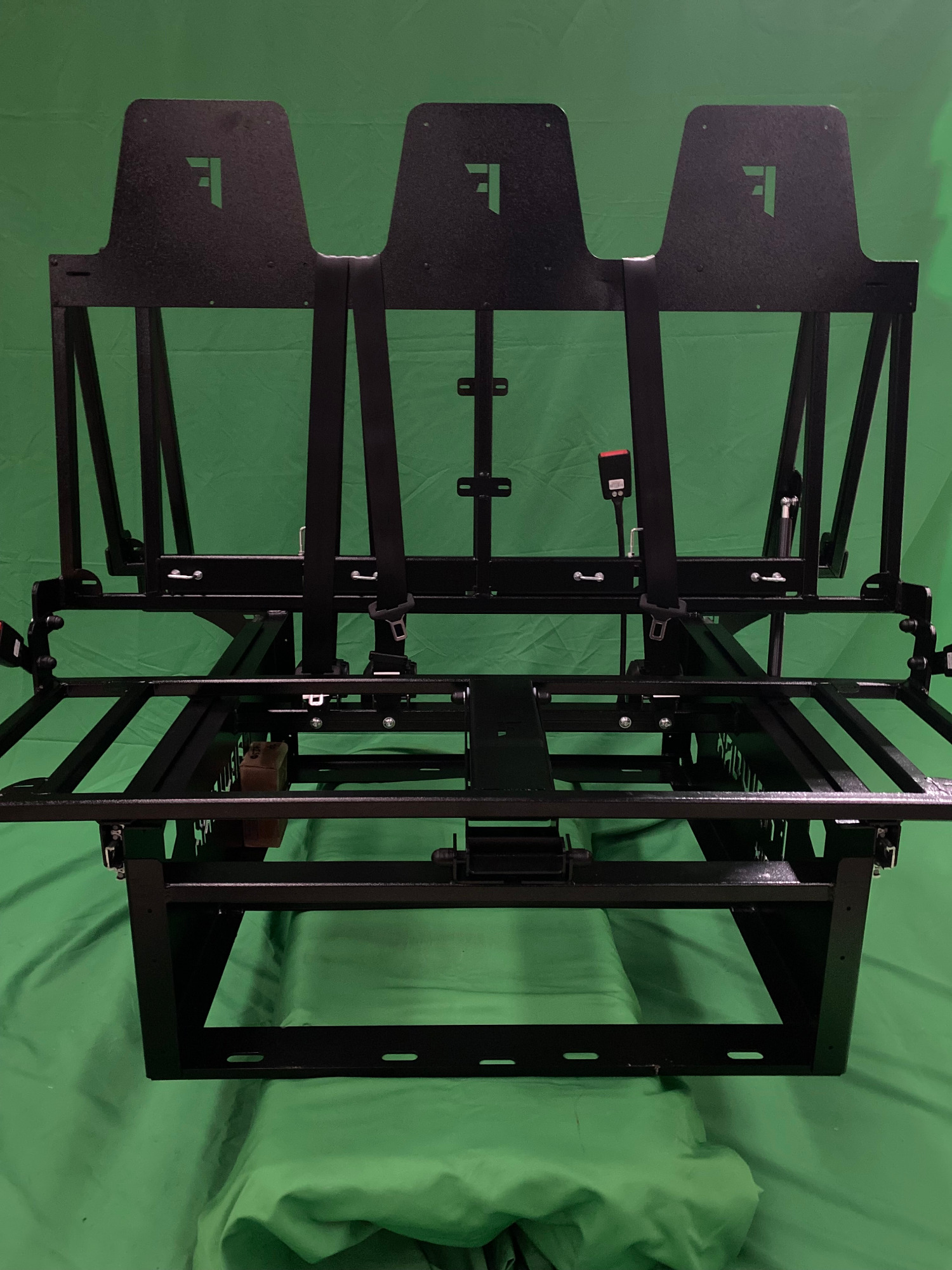

This is our flagship product which fits perfectly into VW Transporters, Ford Transits,  Renault Traffics, Vauxhall Vivaro`s and many more models.

This comes with added benefits of a reclining backrest, FABFIX (ISOFIX) ECE R145, fitting holes on the side panel base to mount a drawer system (we can only supply the runners  but the drawer body would still need building) and finally integrated headrest structure to comply with ECE R17.

Not forgetting the FABWORX lifetime warranty (t&c apply)

available in

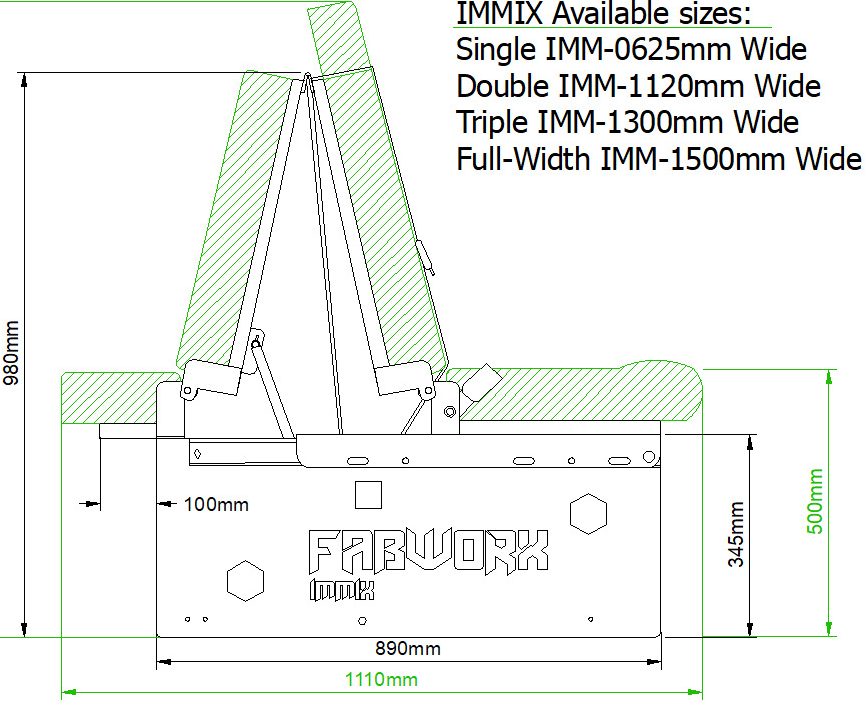

625mm single - 1120mm double (3/4) - 1300mm triple - 1500mm full width

How to use

lift up recliner handle and pull forward making sure the seatbelt  is pulled forward and slack (see video)

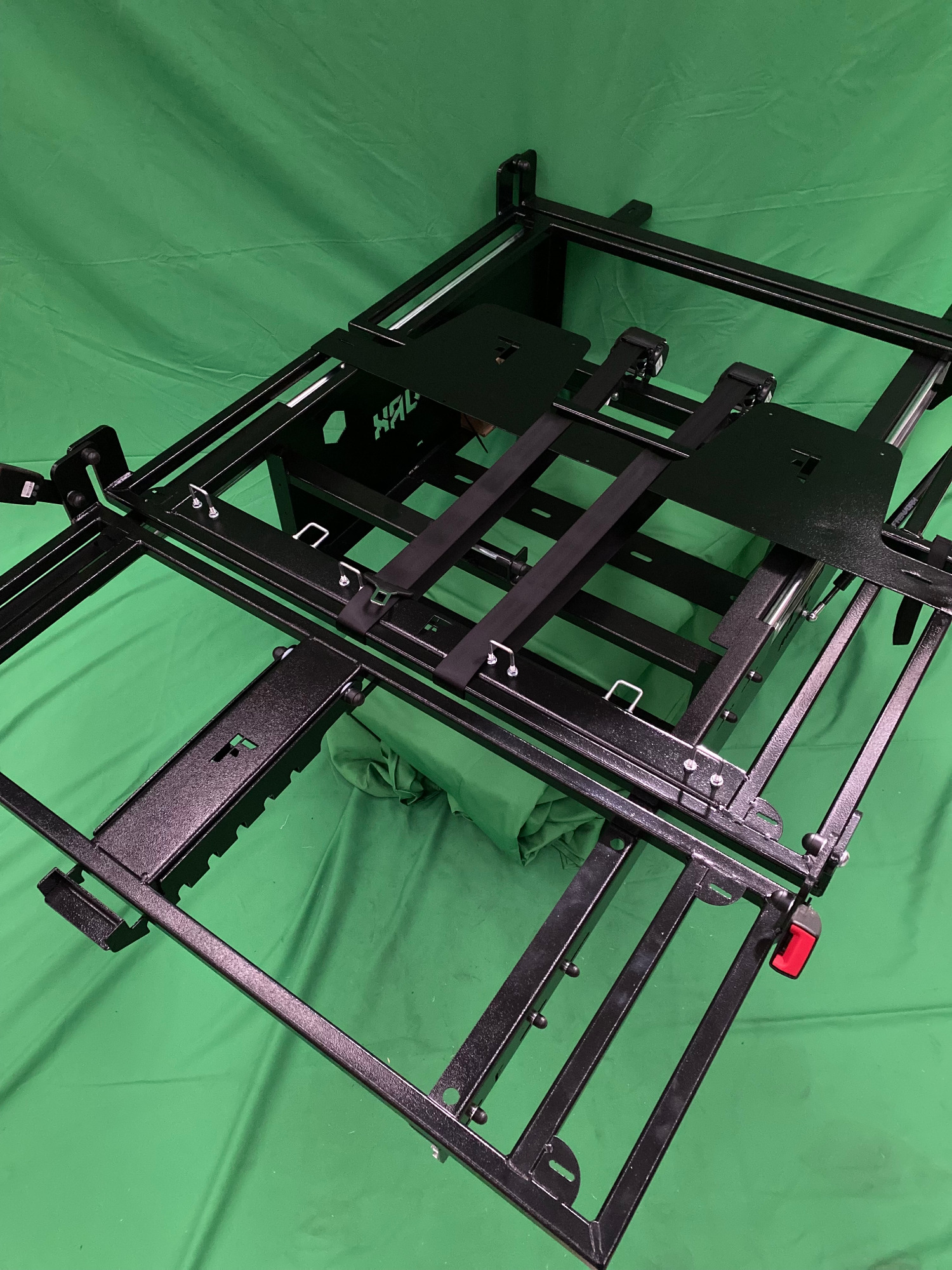

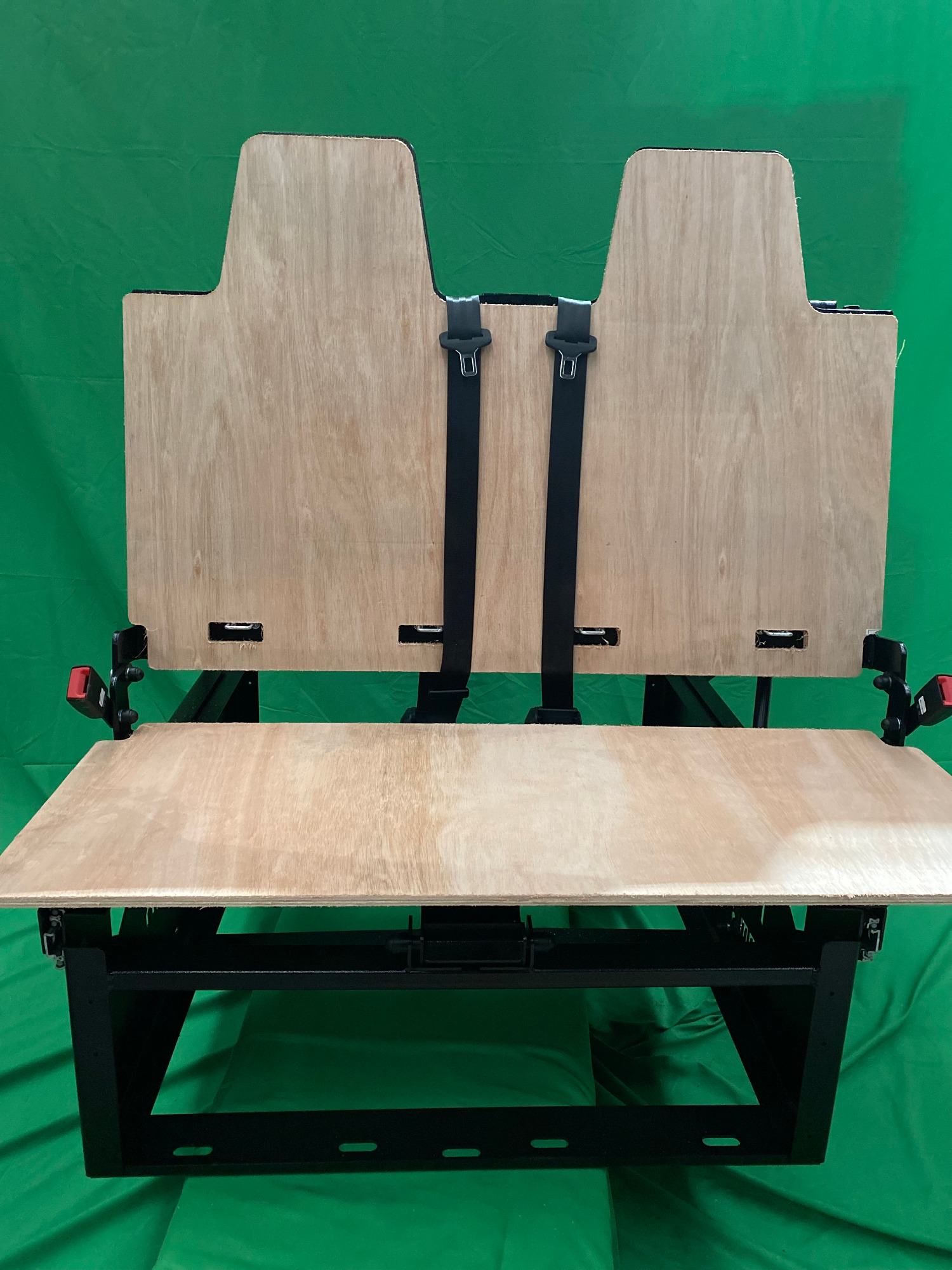

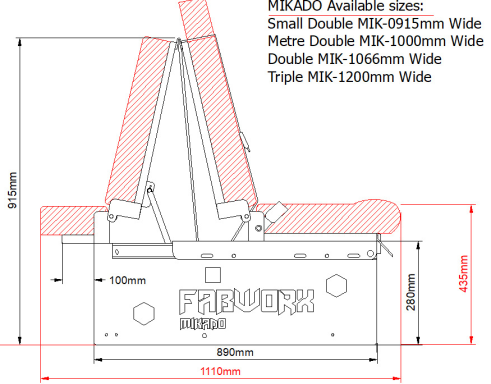

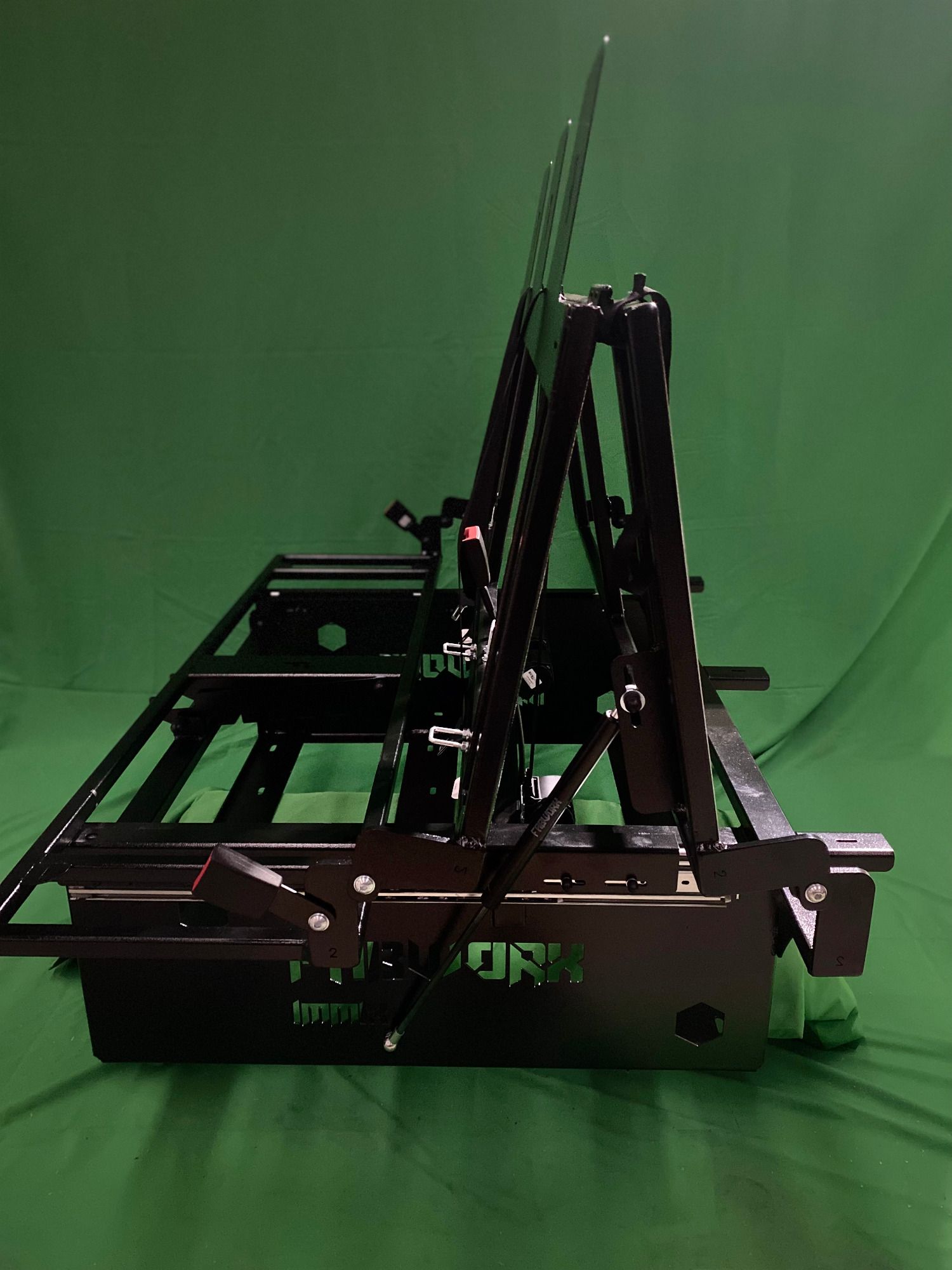

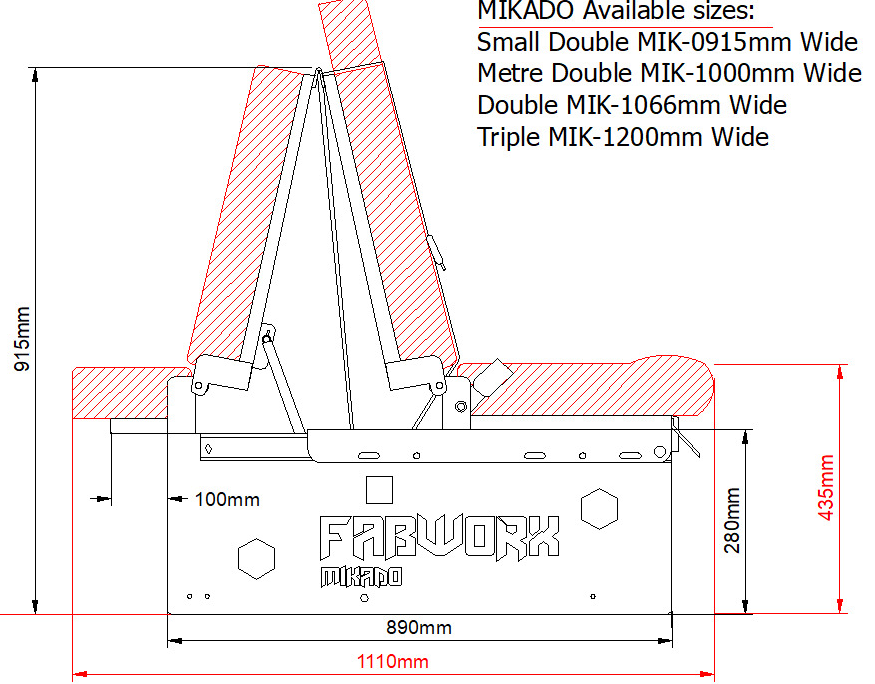

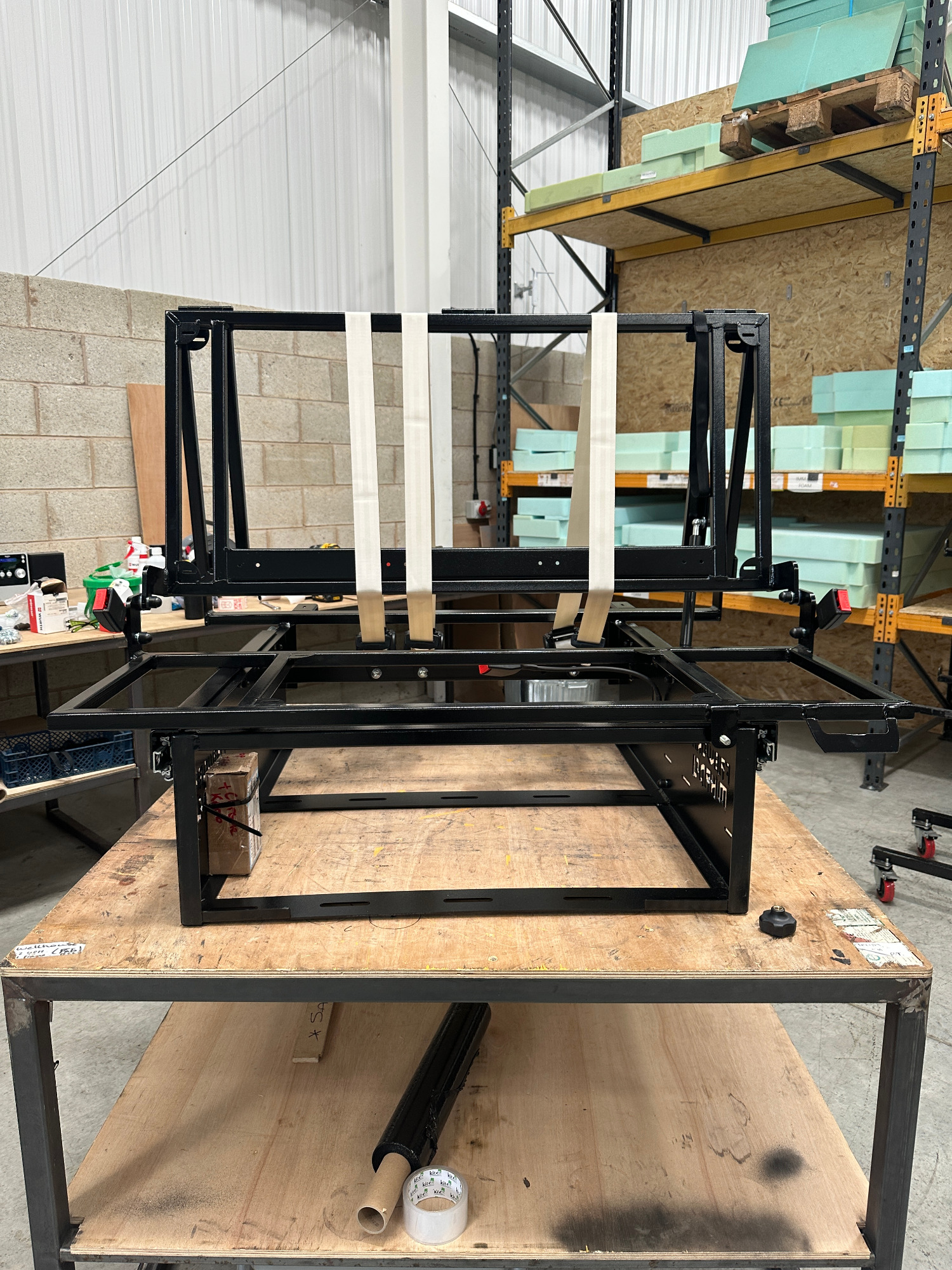

This product which fits into smaller vehicles Like Nissan NV models , Toyota Alphards , Nissan Elgrands, VW Caddys plus many more

It comes with , FABFIX (ISOFIX) ECE R145, Fitting holes on the side panel base to mount a drawer system (we can only supply the runners but the drawer body would still need building) or enough space for a drawer fridge unit.

Not forgetting the FABWORX lifetime warranty (t&c apply)

available in

625mm single - 840mm double (3/4) -915mm double (3/4) -1000mm double (3/4) 1066mmdouble (3/4) - 1200mm triple

How to use

unscrew the front transit knob , pull the bed forward with the seatbelts  pulled slack then pull down into a bed position (see video)

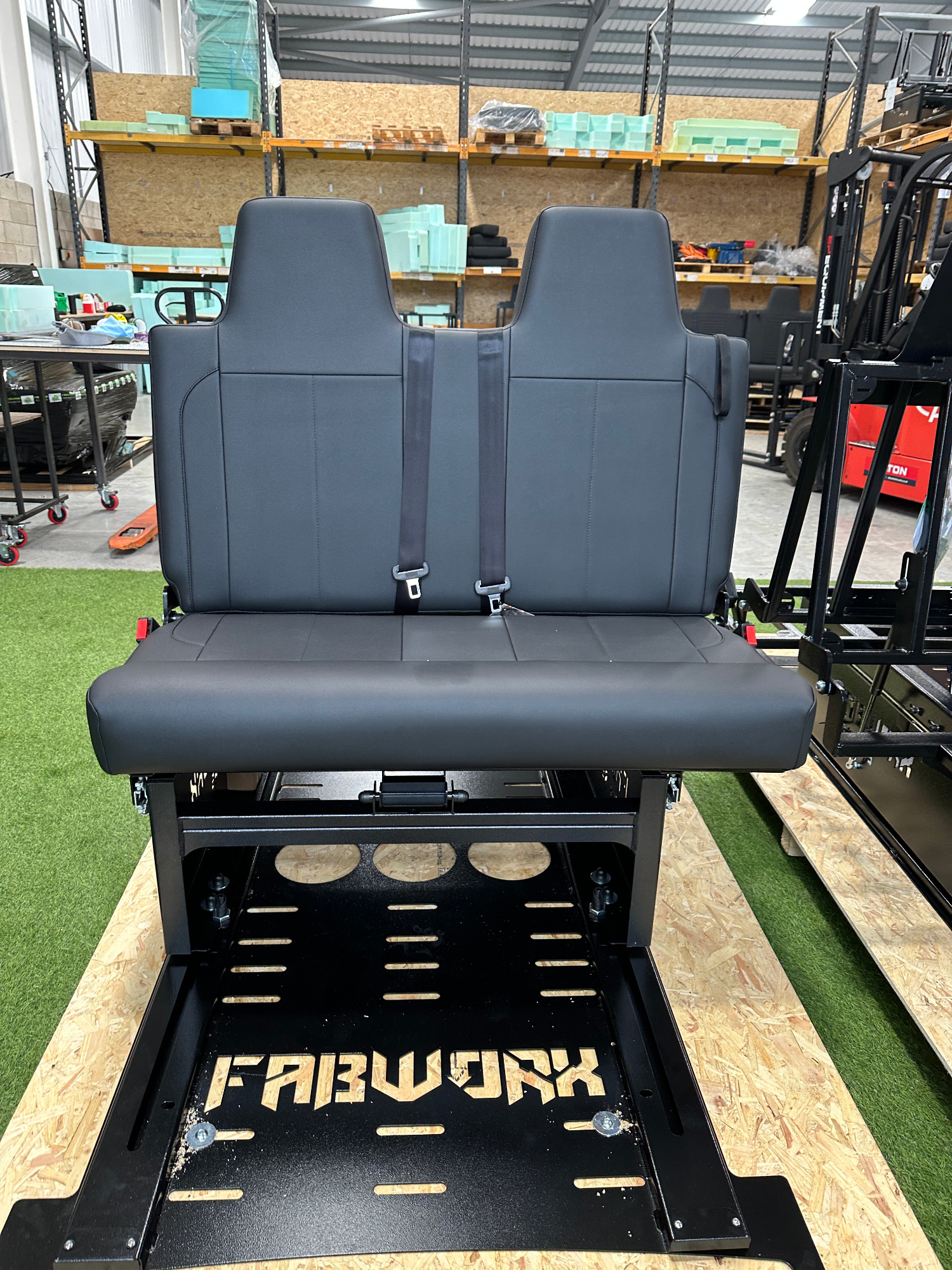

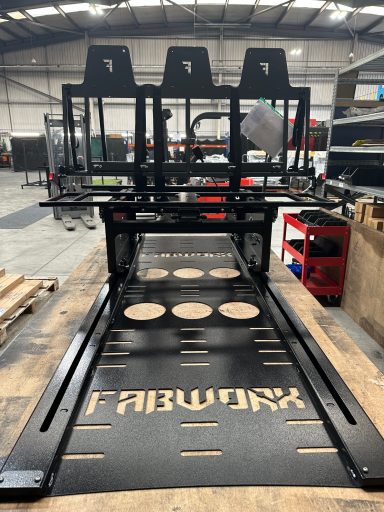

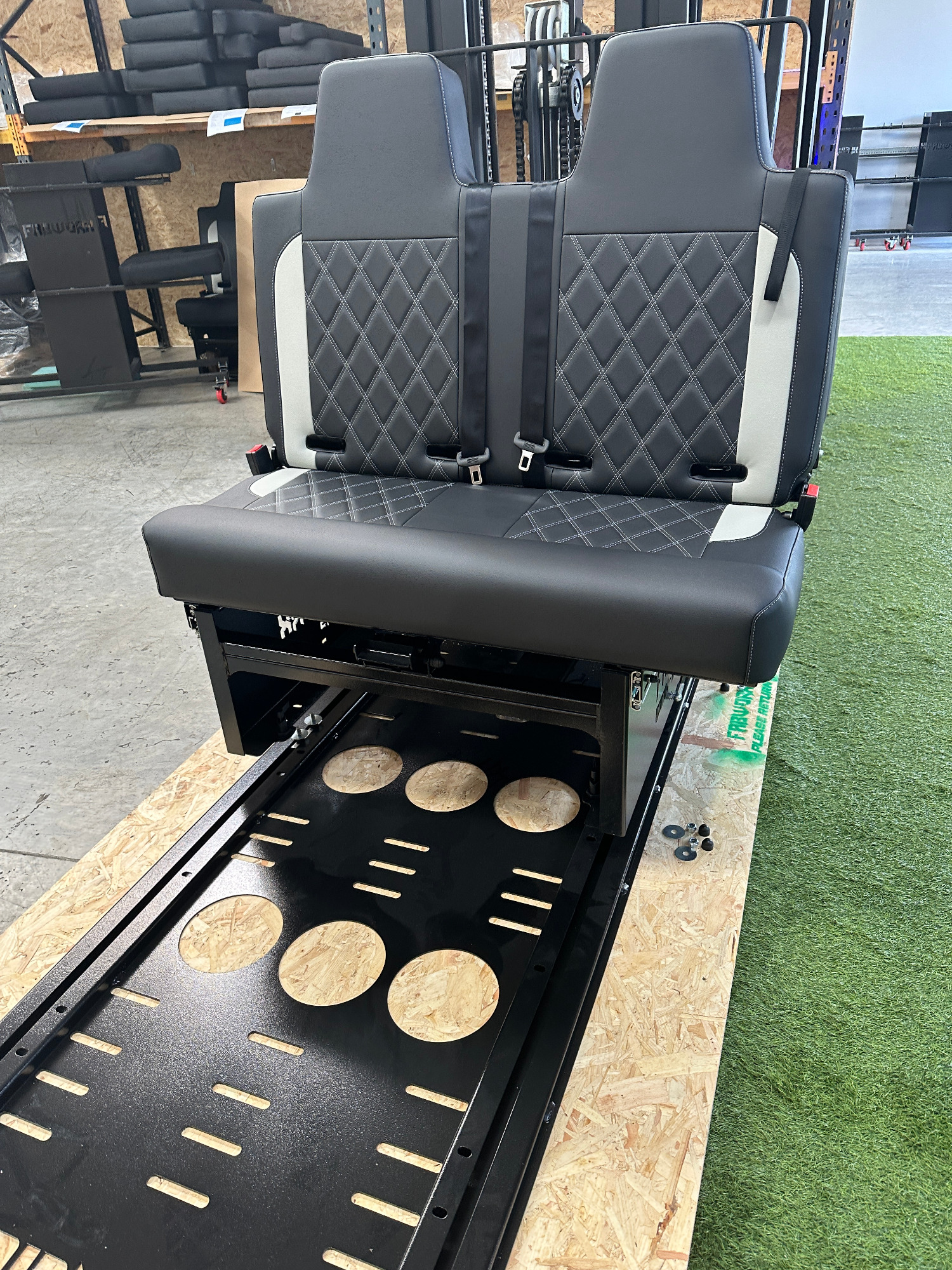

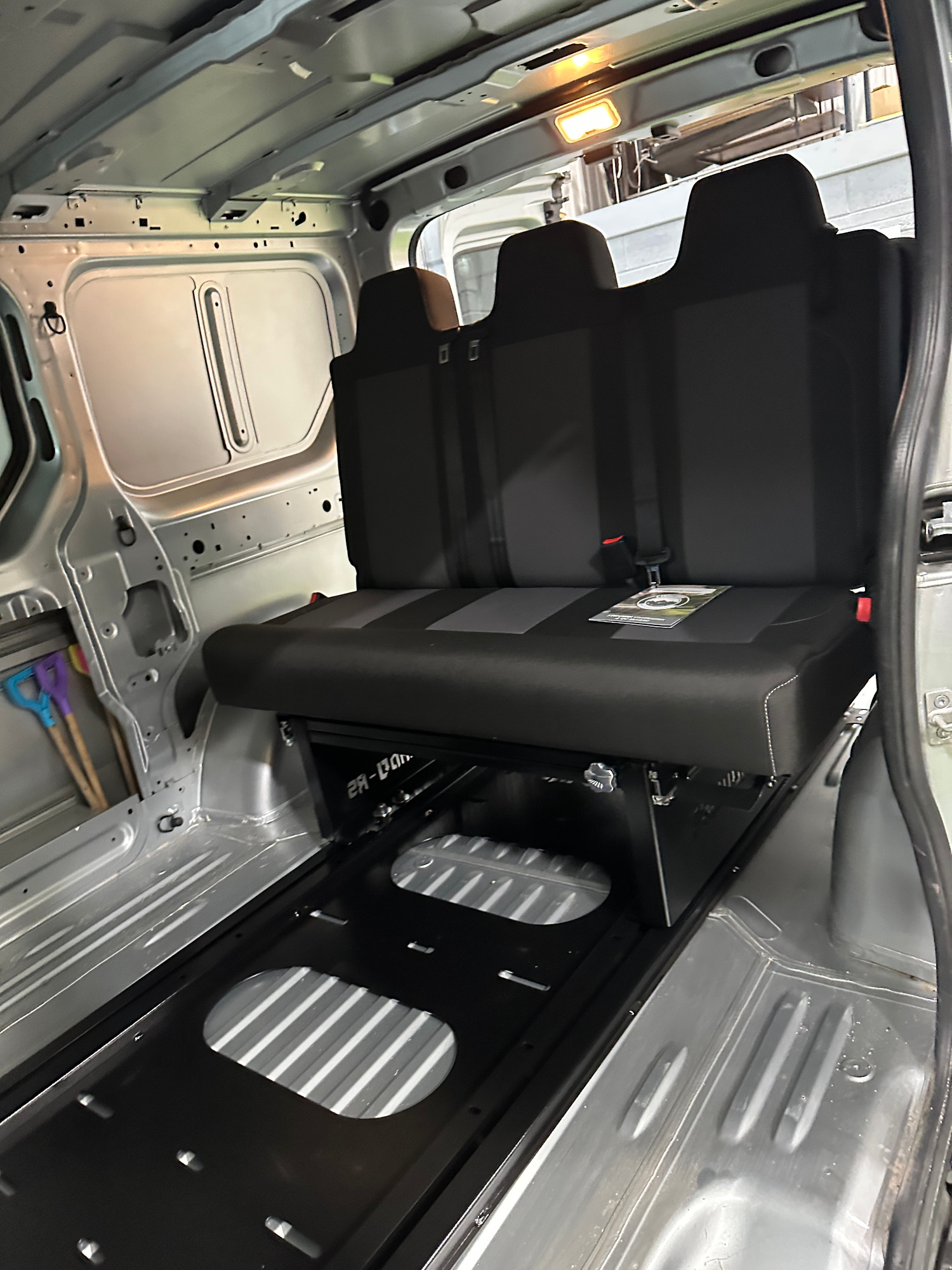

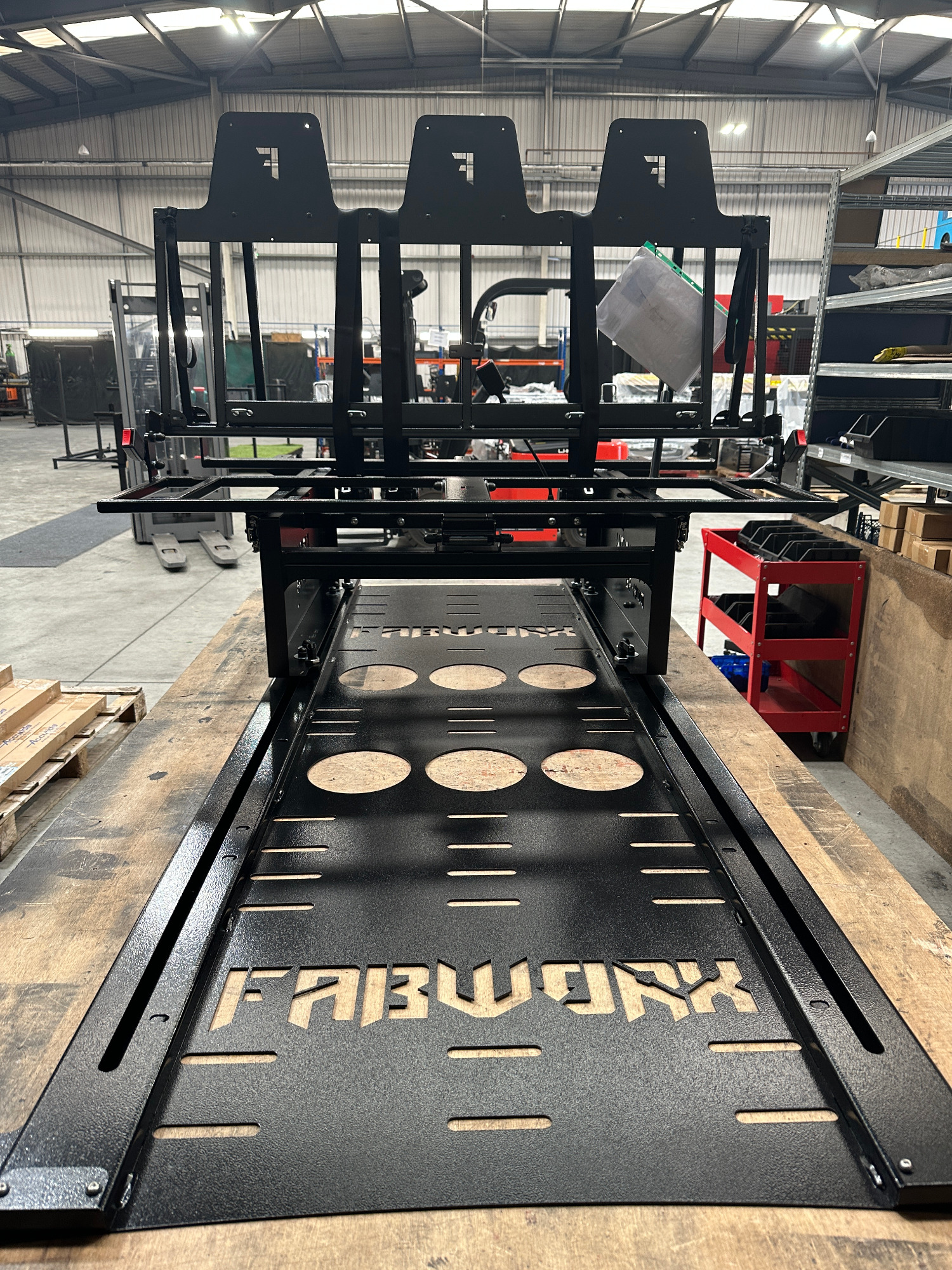

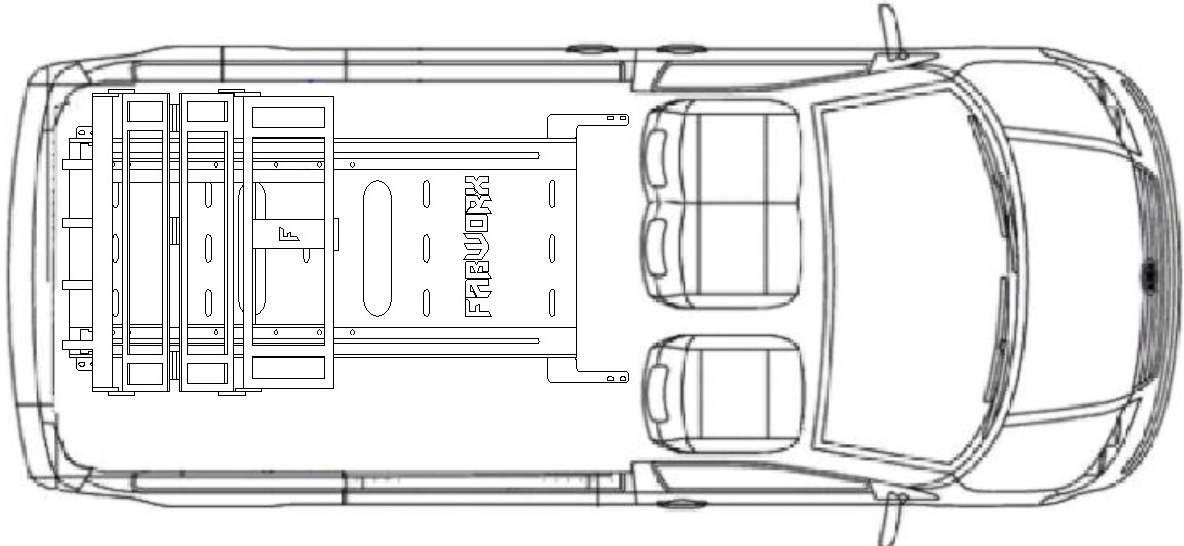

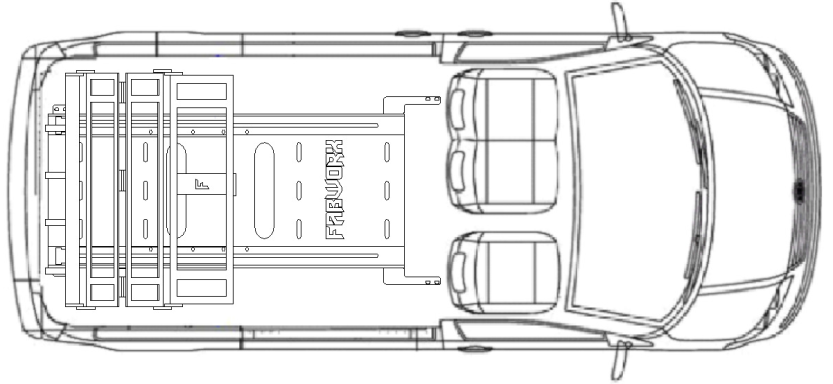

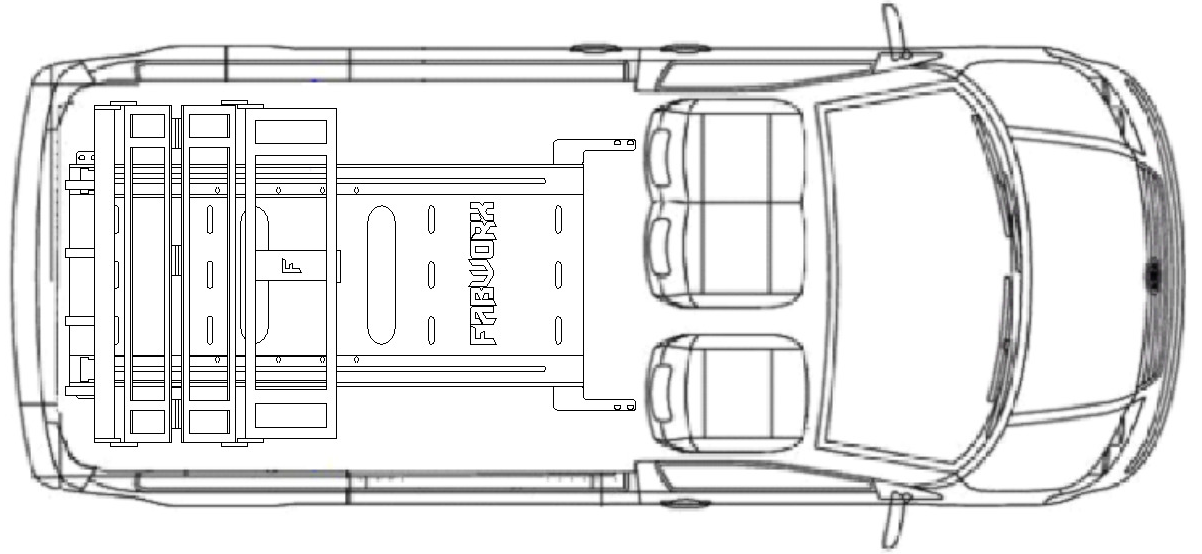

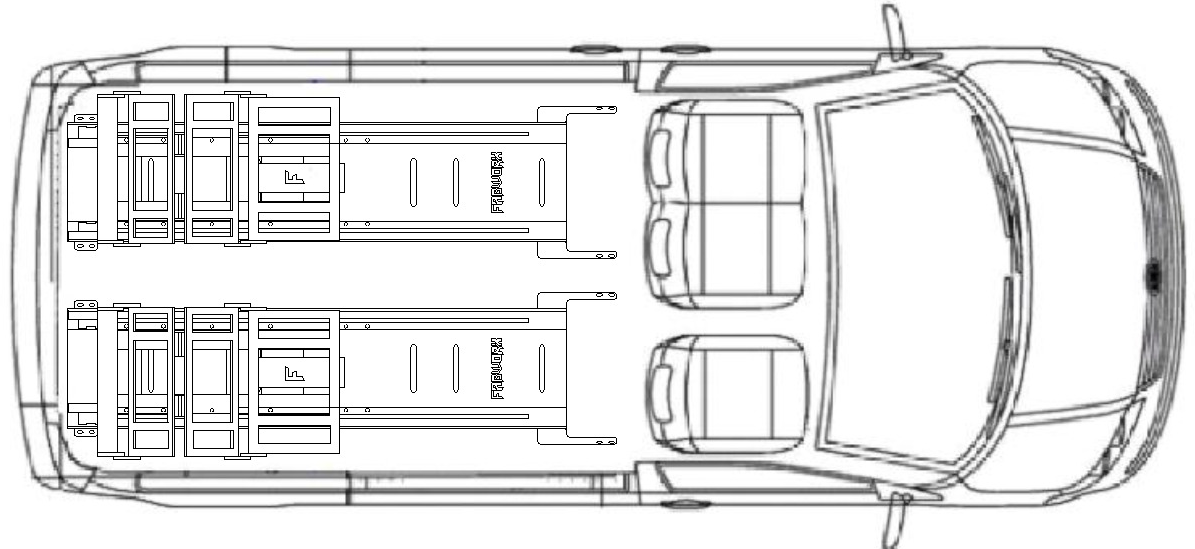

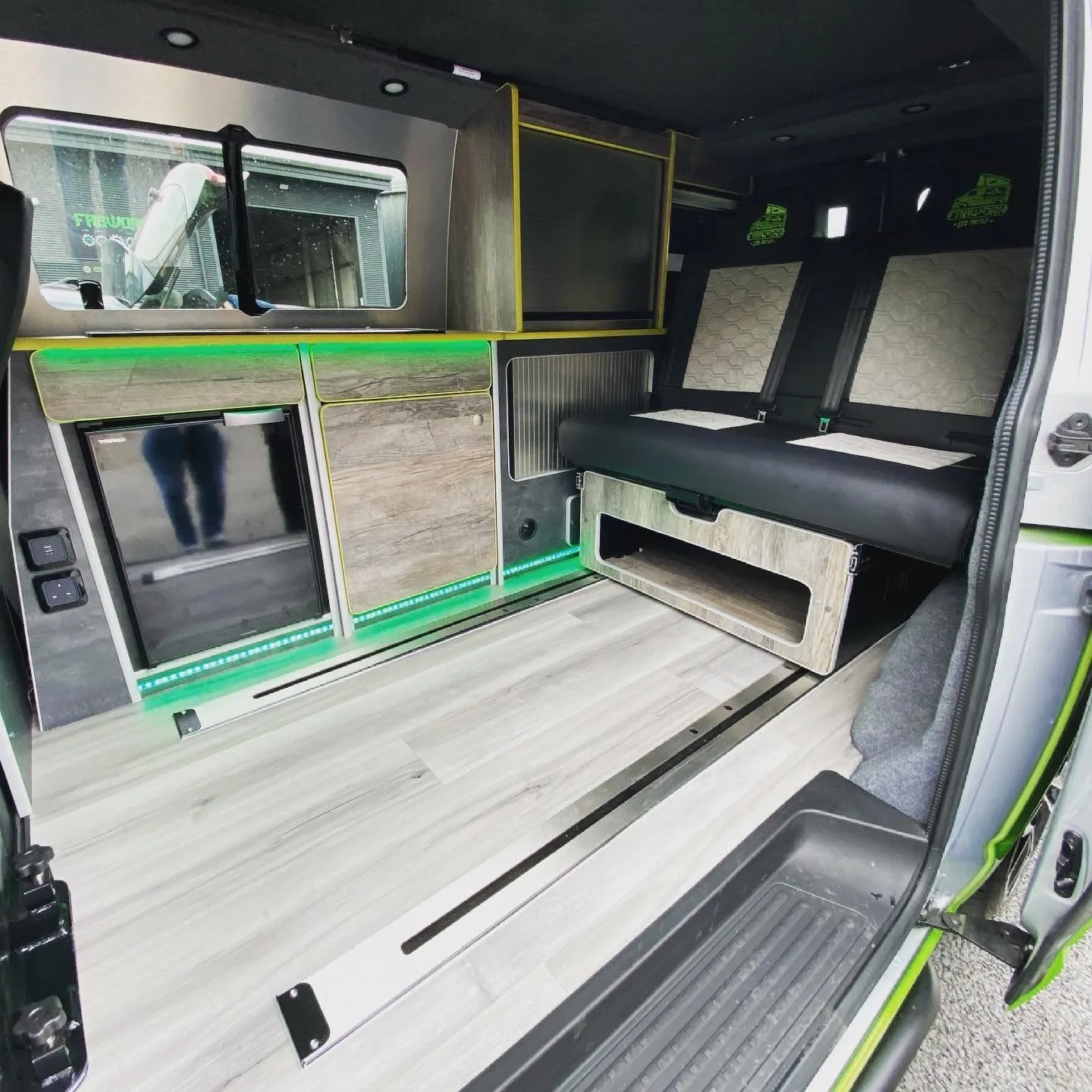

This is the quickest and easiest sliding rail system to fit on the market. With fitment in under 2hrs and no fuel tanks to remove this is the way forward.

This is available on our full range apart from the MIKADO Serena and IMMIX MULTI 1200.

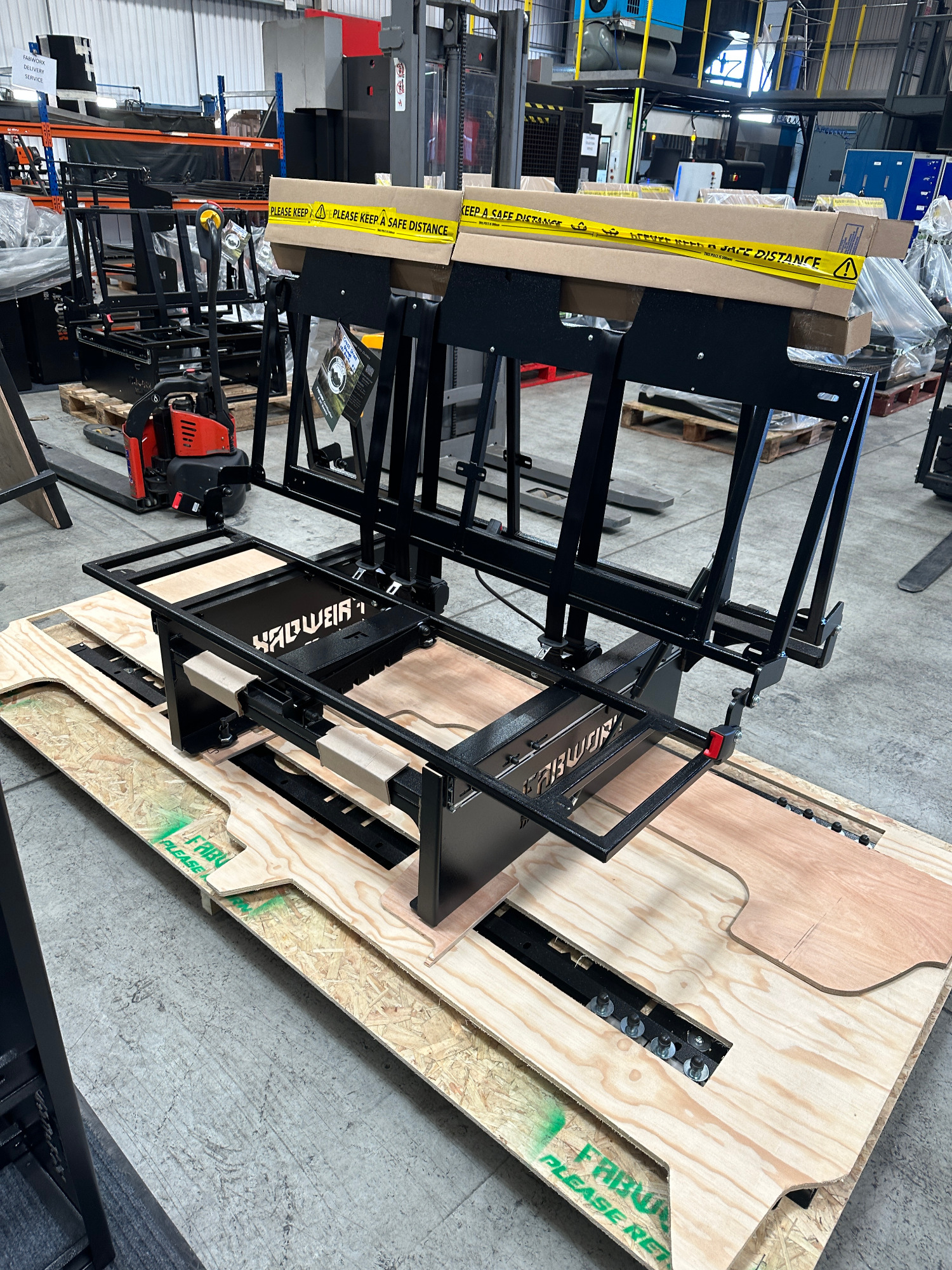

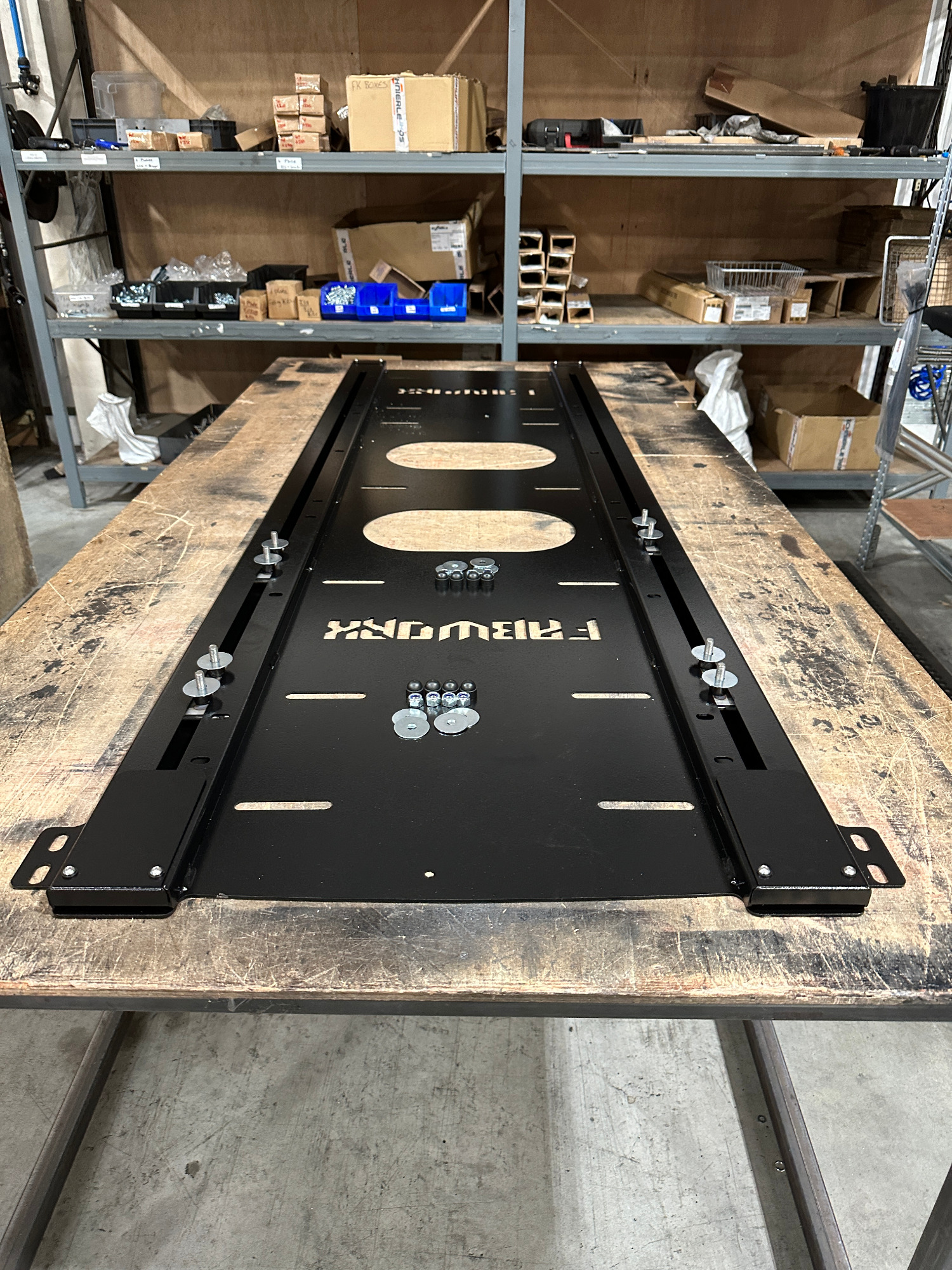

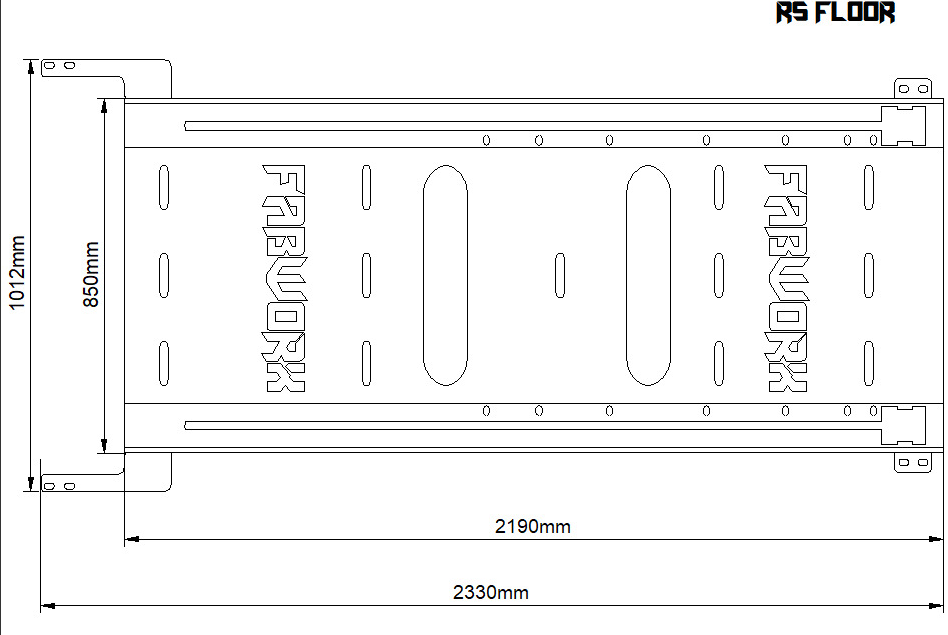

This fits directly onto your bare vehicle floor (we do recommend lying down some soundproof foil backed matting around 5-10mm thick so the RS floor pan is not on bare metal. Then you will fit your 12/15mm ply floor onto and around the RS floor pan, then apply the finished top floor.

Once in and the conversion is complete you can remove the seat/bed with a 17mm spanner in around 10 mins (two person lift).  Perfect for when you need your van space back.

When refitting we recommend tightening the M10 nuts down to around 15nm of force.



NEW FOR 2024

Two seats in one package which you can independently use when you need to. #gamechanger
